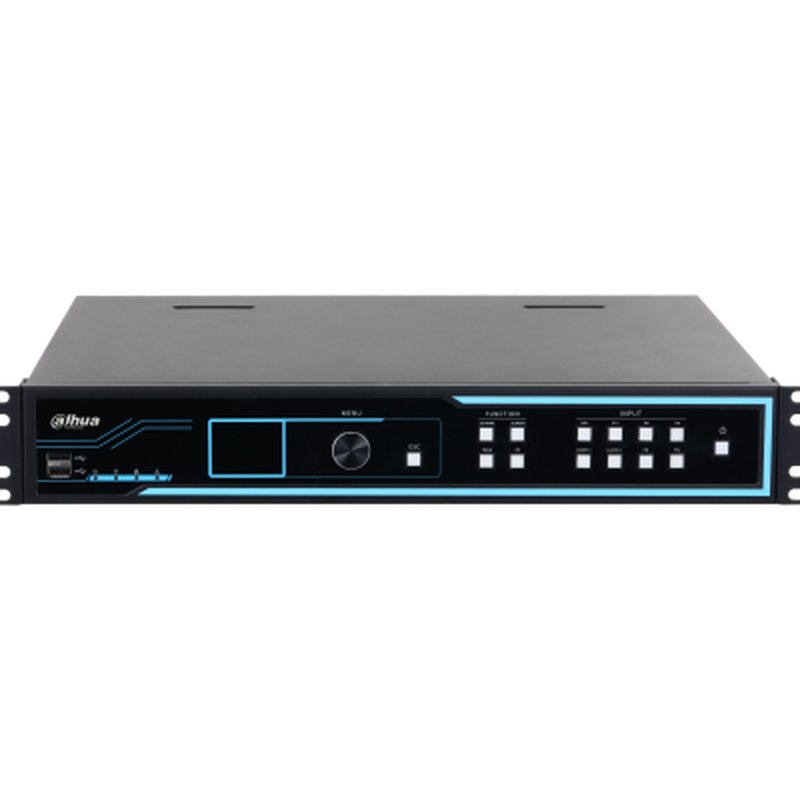

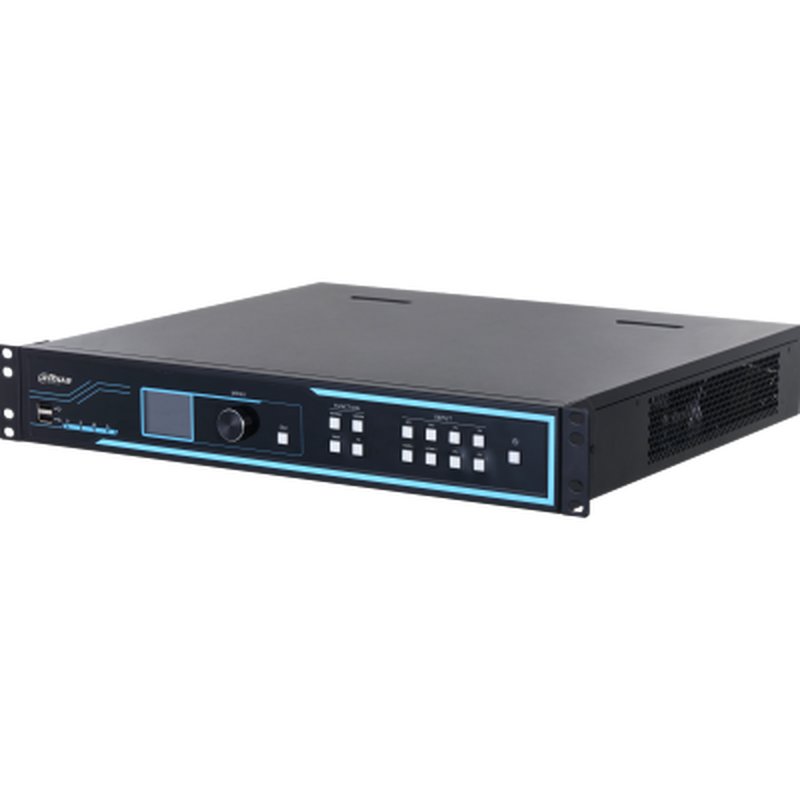

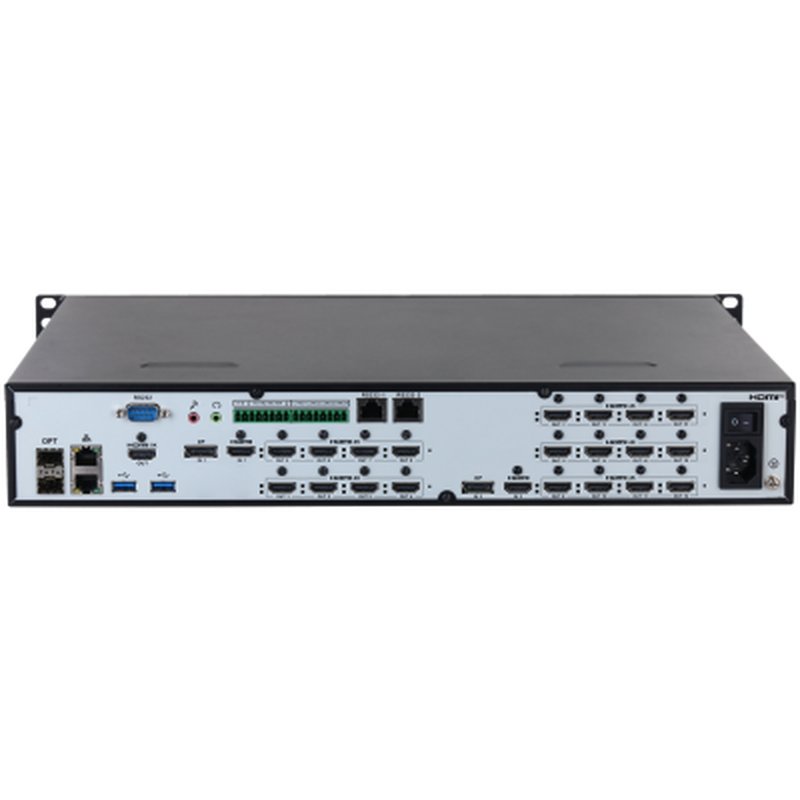

NVD2005DU-4I-8K-4H
Dahua 20CH UHD NETWORK VIDEO DECODER
20-ch HDMI signal output port..
12-ch HDMI audio output.
Decodes videos to multiple video stream decoding standards, such as MPEG2, MPEG4, H.264, H.265, SVAC and MJPEG.
Decodes video streams to multiple resolutions, including QCIF, CIF, 2CIF, HD1, D1, 960H, 720p, 1080p, 3 MP, 4MP, 5 MP, 6 MP, 8 MP, 12 MP and 32 MP.
There are 4 ports in each group, and each group supports an equal portion of the device's decoding and video capabilities. It decodes to 10-ch 32MP@25 fps, (this is only supported by H.265), 35-ch 12MP@25 fps, 50-ch 8MP@25 fps, 70-ch 6MP@25 fps, 90-ch 5MP@25 fps, 90-ch 4MP@30 fps, 140-ch 3MP@25 fps,180-ch 1080p@30 fps, 500-ch D1@30 fps videos.
Supports the following resolutions through the HDMI output port: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 and 1024 × 768.
Up to 1920 × 1080 is supported for the DP and HDMI input ports.
