19" Chassis Monitor
LCD Monitore mit robustem Metall-Chassis für den Einbau in eine Konsole oder ein kundenspezifisches Gehäuse.

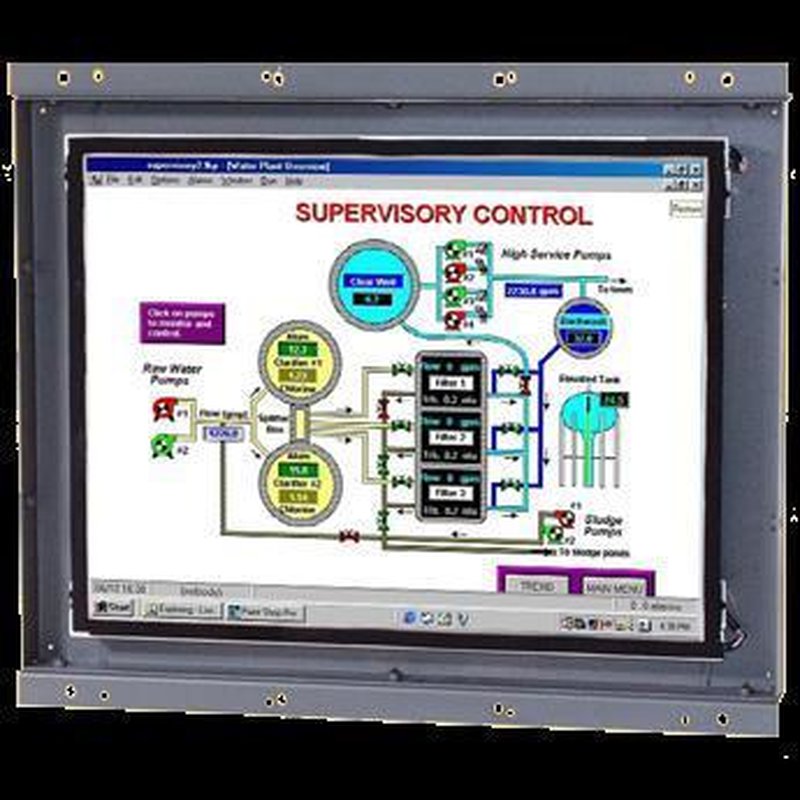

19" Open Frame Monitor
Product Specification
Max Resolution:
1280 x 1024 pixels
Active Display Area:
376 x 301 mm
Response Time:
10ms average, typical
Contrast Ratio:
1000:1 typical
Brightness:
250cd/m² typical
Viewing Angles
178 0 H, 178 0 V
Video Signal:
Analog 0.7Vp-p
Signal Sync:
Separate H&V (+/-ve) TTL
Power Supply:
90 - 260V AC 50/60Hz
Power Consumption:
50W (Max)
Monitor Dimensions:
430 x 396 x 73.4mm
Monitor Weight:
9kg approx
Product Specification
Max Resolution:
1280 x 1024 pixels
Active Display Area:
376 x 301 mm
Response Time:
10ms average, typical
Contrast Ratio:
1000:1 typical
Brightness:
250cd/m² typical
Viewing Angles
178 0 H, 178 0 V
Video Signal:
Analog 0.7Vp-p
Signal Sync:
Separate H&V (+/-ve) TTL
Power Supply:
90 - 260V AC 50/60Hz
Power Consumption:
50W (Max)
Monitor Dimensions:
430 x 396 x 73.4mm
Monitor Weight:
9kg approx
