15" Marine Monitor

Artikelnummer: 29LM151030

LCD Monitore für den Einsatz im Cockpit mit wasserdichtem Gehäuse und sehr heller Hintergrundbeleuchtung.

Kategorie: Marine Monitor


Preise sichtbar nach Anmeldung
Im Zulauf


LCD Monitore für den Einsatz im Cockpit mit wasserdichtem Gehäuse und sehr heller Hintergrundbeleuchtung.

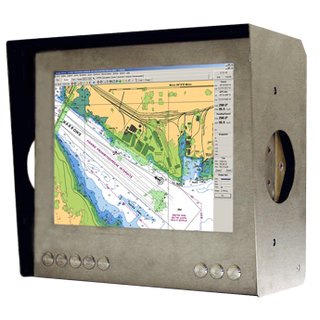

15" LCD Head Mount Marine Monitor

This custom monitor has been designed to comply with marine standards. Using a TFT Liquid Crystal Display it is fitted with interface
circuits that allow it to be connected easily to standard PC graphics video source.


An advanced brightness dimming technique, with a 1000:1 dynamic range, is employed to meet the demanding needs of nighttime
operation in maritime environments. The front panel houses all the user controls as well as the Power on Indication, which is embedded in the power button.



Max Resolution:
1024 x 768 pixels
Active Display Area:
304.1 x 228.1mm
Response Time:
13ms typical
Contrast Ratio:
500:1 typical
Brightness:
250cd/m2 typical
Viewing Angles
130 0 / 130 0
Video Signal:
RGB 0.7-1.0Vp-p
PAL/NTSC & SECAM with ‘Picture In Picture’ (PIP) facility
Signal Sync:
Separate H & V (=/ve) TTL or
Composite (-ve) TTL or Sync -on - Green (-ve) 0.3V
Power Supply:
15 - 30V DC
Power Consumption:
50W (Max)
Monitor Dimensions:
430(w) x 363(h) x
89(d) mm
Monitor Weight:
9kg approx
