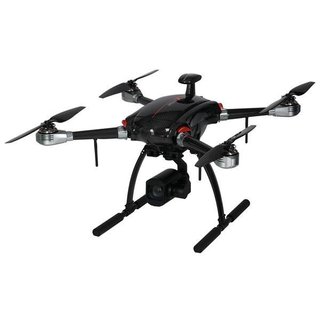

Aircraft |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Diagonal Wheelbase |
940mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
940(mm) x 940(mm) x 521(mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package Dimensions |
600(mm) x 430(mm) x 720(mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Satellite Positioning Systems |
GPS/Beidou/GLONASS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
3.3kg(7.28lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Takeoff Weight |
10kg(22.05lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flight Parameter |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hovering Power |
768W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hovering Time |
35mins |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hovering Accuracy |
Vertical: ±0.5m , Horizontal: ±0.2m( |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Speed |
25m/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Flight Height |
1500m(4921.3ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Takeoff Altitude |
5000m(16404.2ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Ascent Speed |
15m/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Descent Speed |
2.5m/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Tilt Angle |
25° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Wind Speed Resistance |
14m/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Angular Velocity |
100°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Flight Time |
38mins |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Controller |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Frequency |
CE:800M FCC:900M |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max Transmission Distance |
5Km |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery |
25 LiPo, 7800mAh |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-30°C ~ 70°C(-22°F ~ 158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-30°C ~ 70°C(-22°F ~ 158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PC Ground Station |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
500G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery |
8550mAh |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bandwith |
8Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max Transmission Distance |
10KM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen |
13.1" touch screen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Battery |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
22000mAh |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery Type |
LiPo |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
2.9kg(6.39lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-30°C ~ 70°C(-22°F ~ 158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
-30°C ~ 70°C(-22°F ~ 158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensor |
1/1.9” STARVIS™ CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixel |
2560(H)x1920(V), 6 Megapixels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
1/1s~1/30,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
6mm~180mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 61.2° ~ 2.1° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical zoom |
30x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Range |
Pan: ±168°; Tilt: -90° ~ 45° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Speed |
Pan: 130°/s; Tilt: 130°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accuracy |
±0.01° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding |
H.265/H.264/MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
6M(2560×2560)/5M(2560×1920)/3M(2048×1536)/ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
EIS |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD Card 128G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Camera (Optional) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Pixel |
640(H)x512(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Size |
17µm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Thermal Sensitivity |
=40mK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
19mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Measurement |
Low Gain: -40°C ~ +550°C(-40°F ~ 1022°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Range |
Pan: ±168°; Tilt: -90° ~ 45° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt Speed |
Pan: 130°/s; Tilt: 130°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Acuracy |
±0.01° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding |
H.264/MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD Card 128G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Live Broadcasting(Optional) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1920(H) x 1080(V), 2 Megapixels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Zoom |
12x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Speaker Effective Distance |
=100m(328ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD Card 128G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Easy Installation |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
