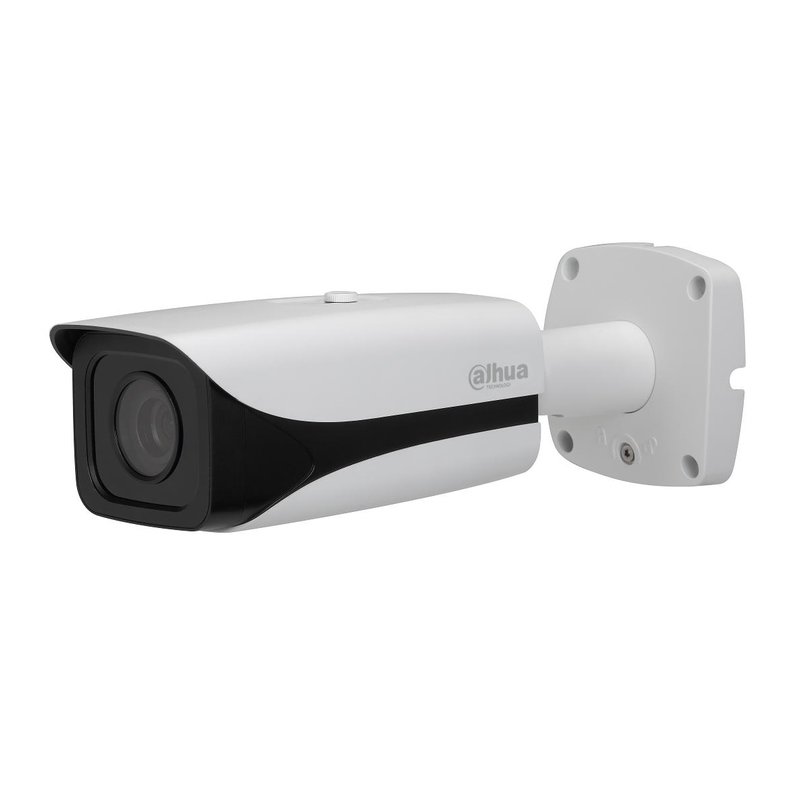

2 Megapixel HD-CVI Box Kamera Outdoor - Dahua
1/2.8" 2.1Megapixel CMOS
25/30fps @ 1080P, 25/30/50/60fps @ 720P
High speed, long distance real-time transmission
HD and SD dual-output (SDI optional), SD Tester out
OSD Menu, control over coaxial cable
120dB True WDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
Audio, Alarm, Heater(optional)
2.7~12mm motorized lens, Auto Iris
Max. IR LEDs length 100m, Smart IR
IP67, IK10, AC24V/DC12V
| Model | DH-HAC-HFW3231EP-Z(H) | DH-HAC-HFW3231EN-Z(H) |
| Camera | ||
| Image Sensor | 1/2.8" 2.1Megapixel CMOS | |
| Effective Pixels | 1945(H)×1097(V) | |
| Electronic Shutter | 1.3s~1/30,000s | 1s~1/30,000s |
| Video Frame Rate | 25/50fps@720P; 25fps@1080P | 30/60fps@720P; 30fps@1080P |
| Synchronization | Internal | |
| Mini. Illumination | 0.005Lux/F1.4, 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output & CVBS standard definition video output SD Tester out |
|
| Camera Features | ||
| Max. IR LEDs Length | 100m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D/3D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 2.7~12mm | |
| Angle of View | H: 95º~36º | |
| Lens Type | Motorized / Auto Iris | |
| Mount Type | F14 | |
| Auxiliary Functions | ||
| Alarm | 1 channel in/out | |
| Audio | 1 channel in | |
| Heater | Optional | |
| General | ||
| Power Supply | AC24V±25% / DC12V±25% | |
| Power Consumption | Max 16.6W Max 22.9W (HFW3231E-ZH) |
|
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) -40°C~+60°C / Less than 95%RH (no condensation) (HFW3231E-ZH) |
|
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Ingress Protection | IP67, IK10 | |

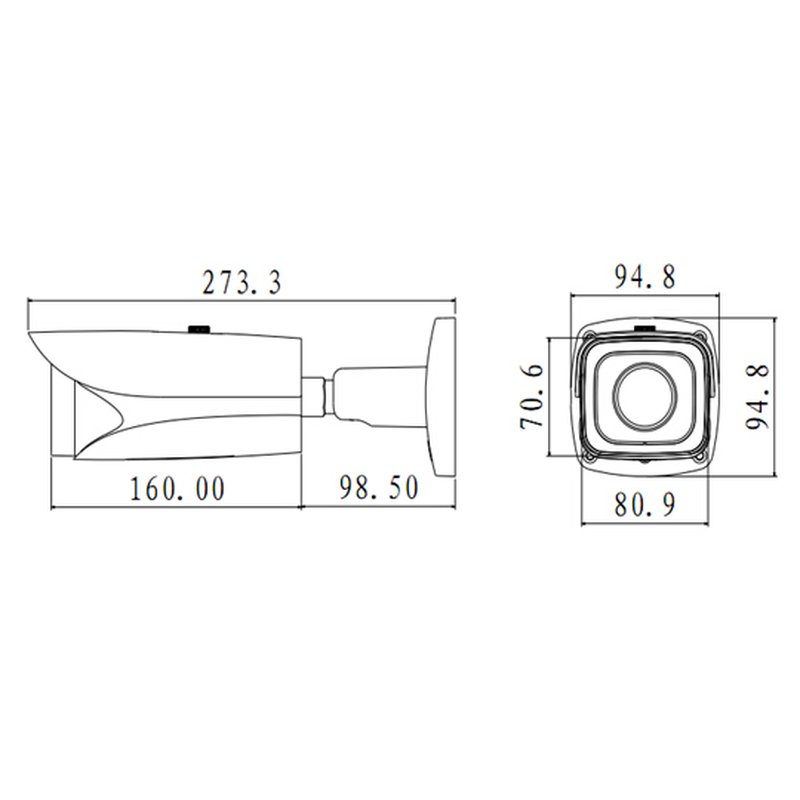

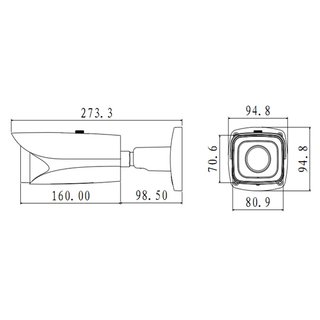

| Dimensions(W×D×H) | 273mm×95mm×95mm | |
| Weight | 1.2kg | |
| Material | Metal | |
