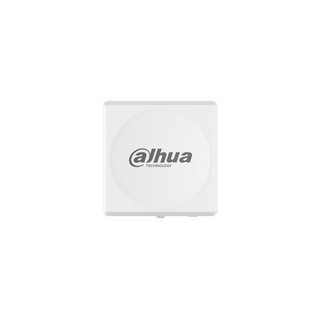

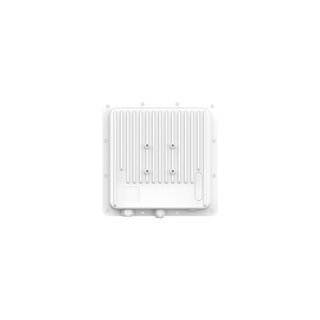

Integrated Antenna Reader




        DHIYT009E
Integrated Antenna Reader
> Air Interface Protocol: Complies with the ISO18000-6C standard
> Antenna Gain: 9 dBi
> VSWR: ≤1.5
> Read Performance: Static read range(Typical): 12 m
> Power transmission: 30 dBm (Max)
> Operating Voltage: 12 VDC
> Rated Power:≤20W
> Operating Temperature: –30 °C to +75 °C
> Protection: IP65 rated
> Product Dimensions: 270 mm × 270 mm × 82 mm (10.63" × 10.63" × 3.23") (L × W × H)
> Net Weight: 2.6kg (5.73 lb)
