16-Kanal Megapixel H.264 Video Decoder
Mit dem ACTi ECD-1100 ist es möglich bis zu 16 IP-Kameras in ein HDMI Signal zu wandeln und auf einen HDMI Monitor auszugeben.
| Model | ECD-1000 |
| Product Type | Video Decoder |
| Number of Channels | 16 |
| Compression | H.264 |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 720 x 480 25 fps at 720 x 576 30 fps at 640 x 480 |
| Wide Dynamic Range | No |
| Audio | No |
| Network Protocol & Service | TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP |
| Analog Video Output | 1, BNC |
| HDMI Output | 1, HDMI Type A |
| Power Source | DC 12V; PoE Class 3 |

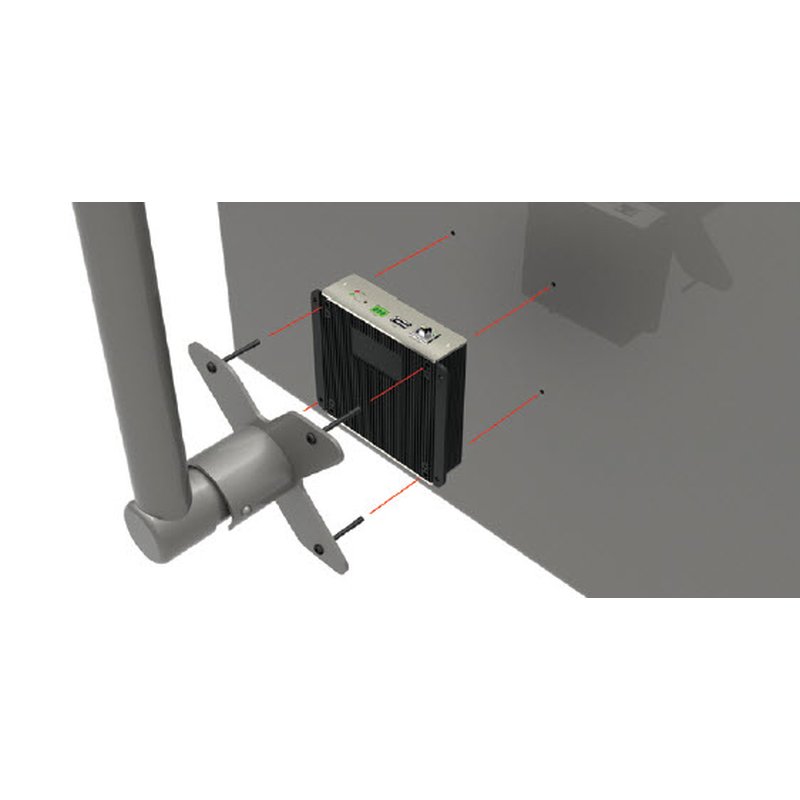

| Bundled Accessories | Pole Mount |
| Mount Type | Surface, Pole, VESA 10x10 |
| Local Access | USB Mouse |
| Remote Access | Web Client (IE) |
| Event Trigger | Video Loss |
| Event Response | Beep |
| Client PC Operating System | Windows 7, Windows Vista, Windows Server 2003, Windows XP |
| PC Web Browser | IE 9 |
| Starting Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Approvals | CE, FCC |
