12" Touchscreen Monitor

Artikelnummer: Touch-1203S-RT

Touchscreen 12" Touchscreen Monitor

Kategorie: 12" Touchscreen Monitor


Preise sichtbar nach Anmeldung
Im Zulauf

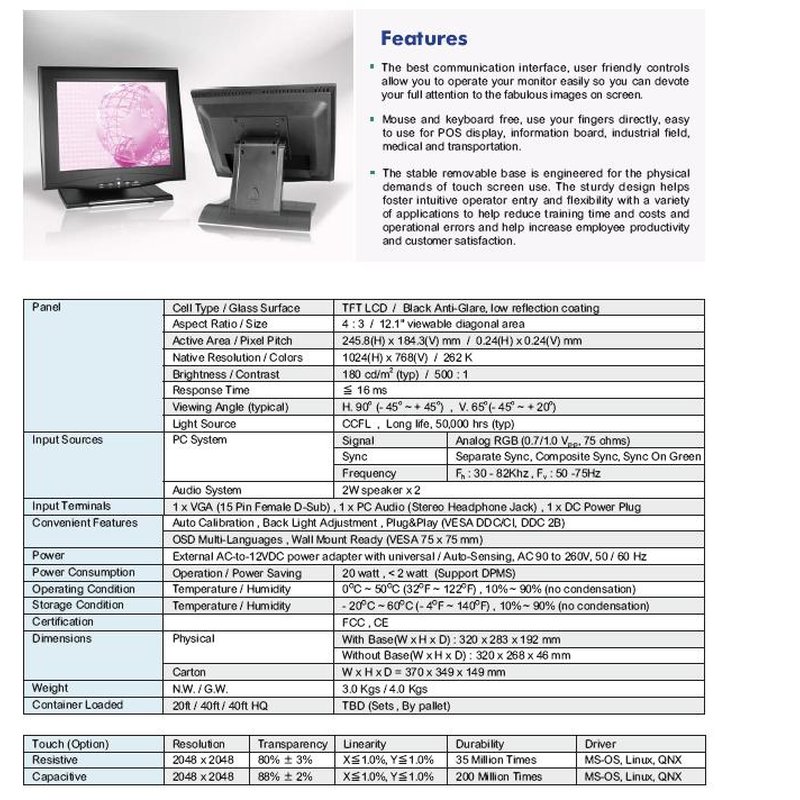

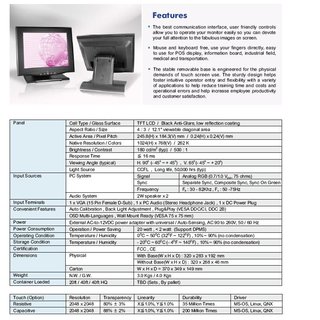

Touchscreen 12" Touchscreen Monitor

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 12.1" viewable diagonal area
Active Area / Pixel Pitch 245.8(H) x 184.3(V) mm / 0.24(H) x 0.24(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 262 K
Brightness / Contrast 180 cd/m2 (typ) / 500 : 1
Response Time ≤ 16 ms
Viewing Angle (typical) H. 90° (-45° ~ +45°), V. 65°(-45° ~ +20°)
Light Source CCFL, Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration, Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages, Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 20 watt, Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (-4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification FCC, CE

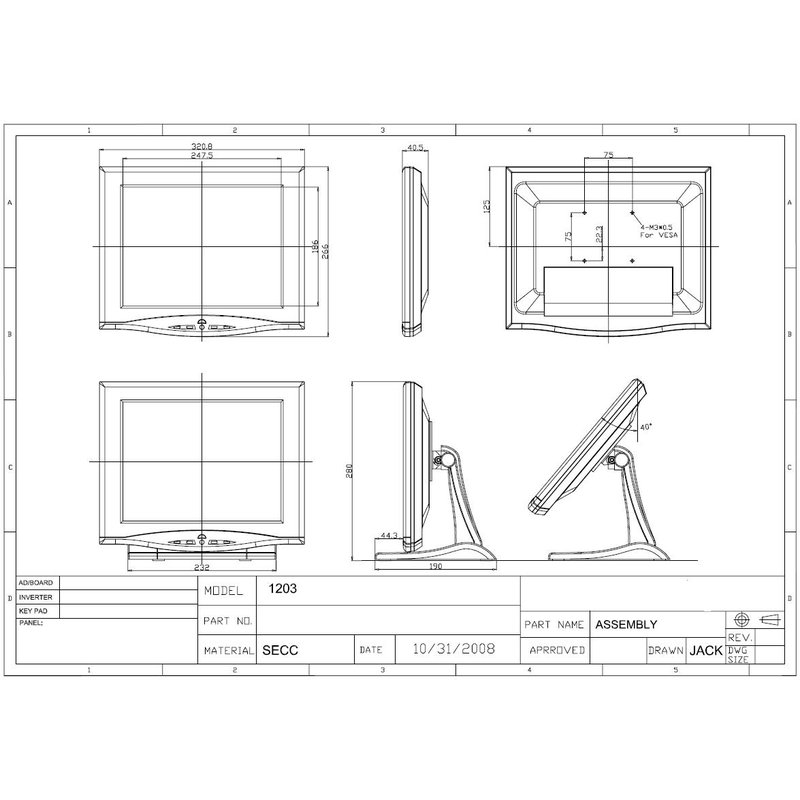

Dimensions Physical With Base(W x H x D) : 320 x 283 x 192 mm
Without Base(W x H x D) : 320 x 268 x 46 mm
Carton W x H x D = 370 x 349 x 149 mm
Weight N.W. / G.W. 3.0 Kgs / 4.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets, By pallet)

Touch (Option) Resolution Transparency Linearity Durability Driver
Resistive 2048 x 2048 80% ± 3% X≤1.0%, Y≤1.0% 35 Million Times MS-OS, Linux, QNX
Capacitive 2048 x 2048 88% ± 2% X≤1.0%, Y≤1.0% 200 Million Times MS-OS, Linux, QNX
