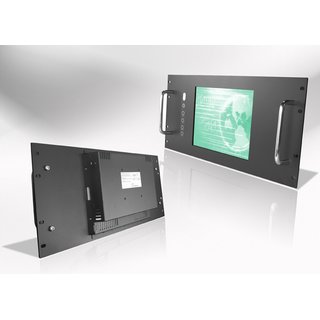

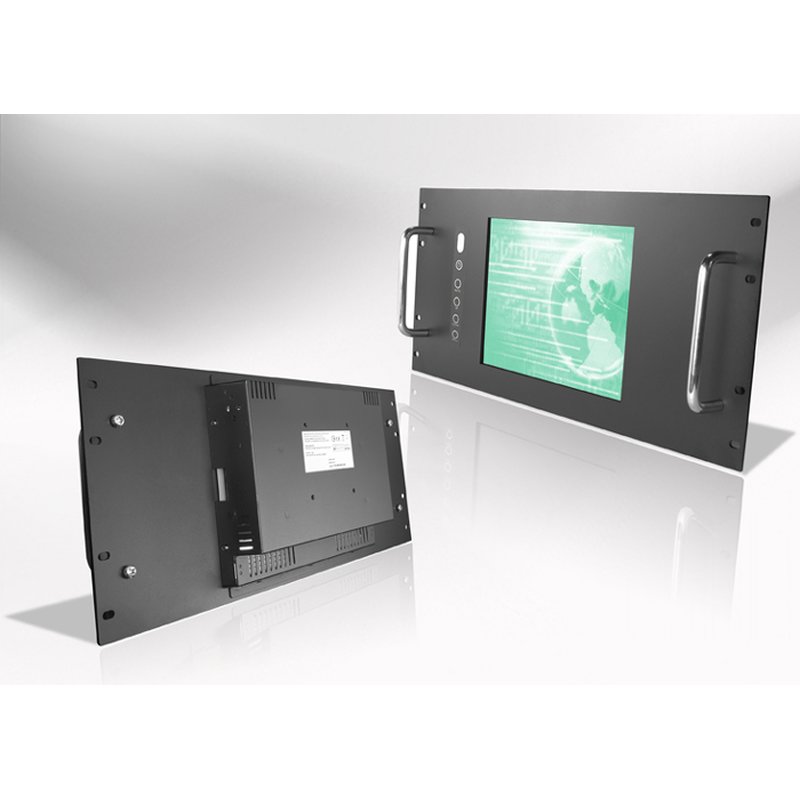

10" Rack Mount Monitor / Touch Screen

Artikelnummer: Rack-1045-1024x768-Touch

Touchscreen 10.4" Rack Mount Monitor 1024x768 / Touch Screen

Kategorie: 10.4" Touchscreen Monitor


Preise sichtbar nach Anmeldung
Im Zulauf


Touchscreen 10.4" Rack Mount Monitor 1024x768 / Touch Screen

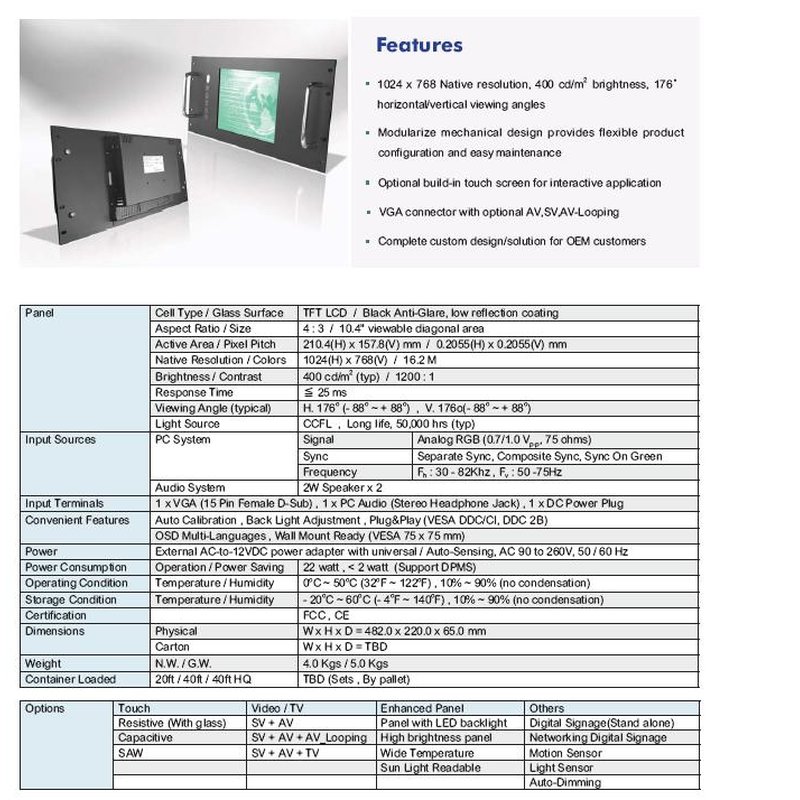

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm
Native Resolution / Colors 1024(H) x 768(V) / 16.2 M
Brignthess / Contrast 400 cd/m2 (typ) / 1200 : 1
Response Time ≤ 25 ms
Viewing Angle (typical) H. 176° (- 88° ~ + 88°), V. 176°(- 88° ~ + 88°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W Speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 22 watt, Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification FCC , CE

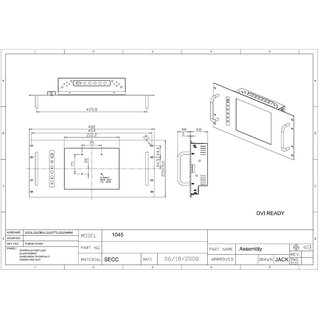

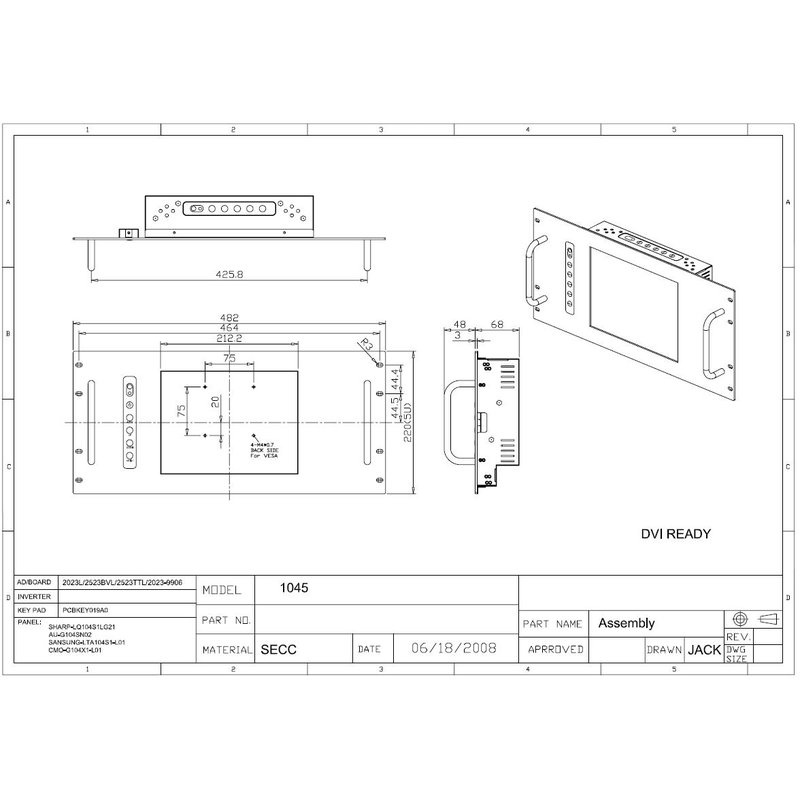

Dimensions Physical W x H x D = 482.0 x 220.0 x 65.0 mm
Carton W x H x D = TBD
Weight N.W. / G.W. 4.0 Kgs / 5.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)



Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
Sun Light Readable Light Ssensor
Auto-Dimming
