HD-CVI Video Distributor - Dahua
Support 1/3 channel In/Out
Lossless non-compression transmission
Support video format as 25/30/50/60fps@720P & 25/30fps@1080P
UPnP, easy installation
LED indicators
Wide-range temperature application: -40ºC ~75ºC
| Physical Port | |
| BNC Port | 4*BNC ports (1/3 channel In/Out) |
| Other | |
| Indicator | Video indicator, power indicator, data indicator |
| Power | DC12V 1A |
| Power Consumption | =5W |
| Temperature | -40ºC ~75ºC |
| Humidity | 10%~90% RH |
| Unit Weight | 200g |

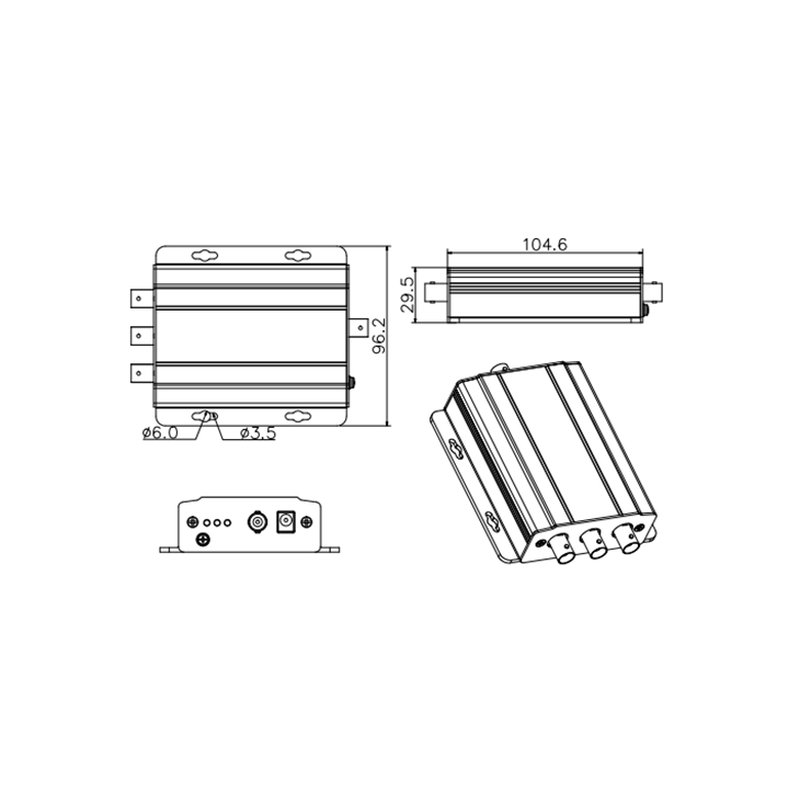

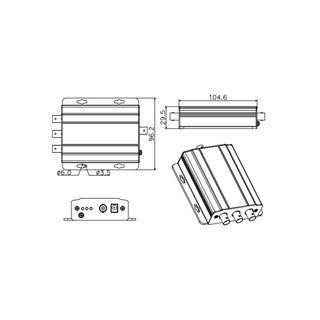

| Dimension | 104.6mm×96.2mm×29.5mm |
| Installation | Wall mount |
