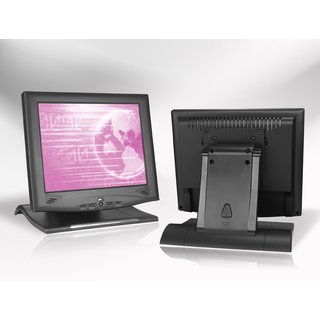

10" Touchscreen Monitor
Touchscreen 10.4" Touchscreen Monitor
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 350 cd/m² (typ) / 400 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140° (- 70° ~ + 70°), V. 120°(-60° ~ +60°)
Light Source CCFL, Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz, Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration, Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages, Wall Mount Ready (On Stand Base)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 20 watt , Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification FCC , CE
Dimensions Physical With Base(W x H x D) : 265 x 245 x192 (mm)
Without Base(W x H x D) : 265 x 225 x 42 (mm)
Carton W x H x D = 325 x 330 x 135 mm
Weight N.W. / G.W. 3.0 Kgs / 4.0 Kgs
Touch (Option) Resolution Transparency Linearity Durability Driver
Resistive 2048 x 2048 80% ± 3% X≤1.0%, Y≤1.0% 35 Million Times MS-OS, Linux, QNX
Capacitive 2048 x 2048 88% ± 2% X≤1.0%, Y≤1.0% 200 Million Times MS-OS, Linux, QNX
