8.4" Vehicle Monitor
8.4" Vehicle Monitor
KME design and manufacture a complete range of LCD TFT monitors for worldwide military applications where low EMI and long-term vibration resilience are essential criteria.
KME design and manufacture a complete range of LCD TFT monitors for worldwide military applications where low EMI and long-term vibration resilience are essential criteria.

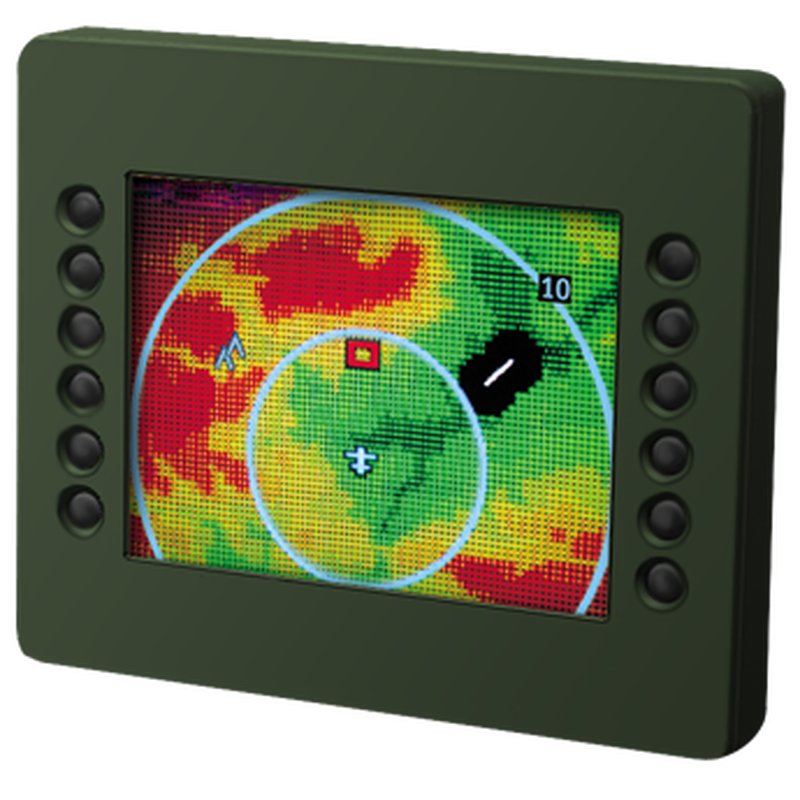

8.4" Vehicle Monitor
The 29LMV Series of LCD monitors have been designed to
comply with military specifications to make it suitable for
use within vehicles and areas where shock and vibration
are key criteria.
The LCD monitor module is housed in a rugged, painted
aluminium metal case and is mounted through rear fixing
points. EMC considerations include the use of extensive
shielding.
The DC monitor has been designed to accept a wide range
of signal timings from VGA to XGA, and set-up controls
for fine-tuning of the display are located at the rear of
the monitor. Once set, no further adjustments should be
required and the last setting is stored in memory.
Product Specification
Max Resolution:
800 x 600 pixels
Active Display Area:
170.4 x 127.8mm
Contrast Ratio:
600:1 typical
Brightness:
650cd/m2 typical
Viewing Angles
160 0 / 140 0
Touchscreen:
Resistive / RS422
Interface::
LVDS
Power Supply:
18 - 36V DC
Power Consumption:
28W (normal operation 15-20W)
50W to raise from -40oC
Monitor Dimensions:
315 x 255 x 50mm (approx)
Monitor Weight:
2kg approx
