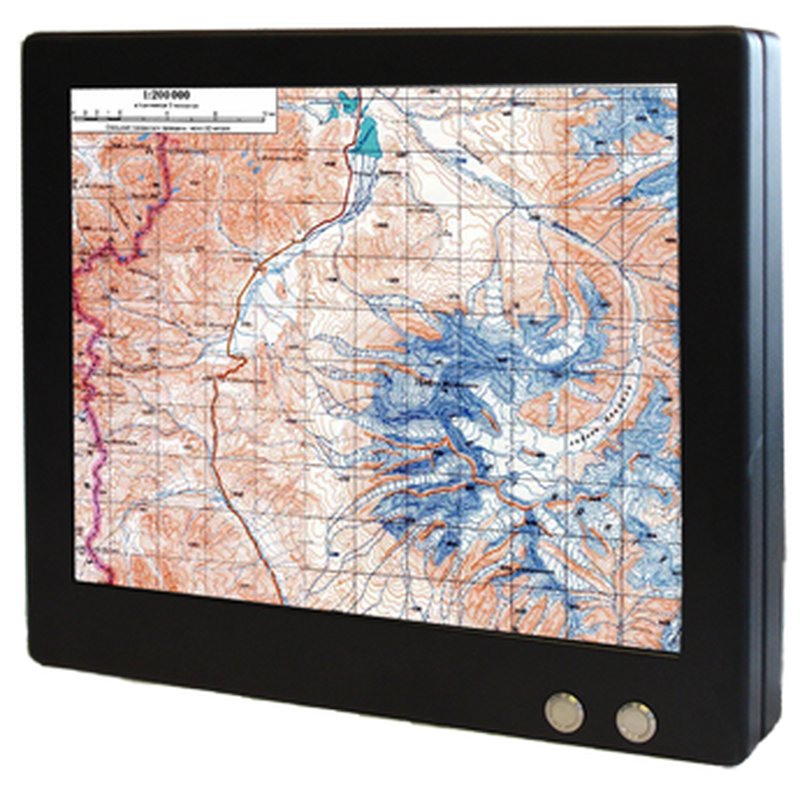

10.4" Head Monitor

Artikelnummer: 29LM103D31MP-M

10.4" Head Monitor

Auflösung: 640 x 480 Pixel

Kategorie: Head Mount


Preise sichtbar nach Anmeldung
Im Zulauf


10.4" Head Monitor

The 29LM103D31MP-M Series of LCD monitors has been designed for industrial applications that require a compact VGA
compatible monitor with good viewability. It is constructed from painted Aluminium, making it lightweight with good rigidity.


The 29LM103D31MP-M Series incorporates rugged chassis construction for shock and vibration. With wide viewing angles and deep dimming capabilities, this series of monitors is ideal for the more demanding of applications. The 31MP-M series has been designed to comply with military standards for shock & vibration and EMC.
10.4" Head Monitor

The 29LM103D31MP-M Series of LCD monitors has been designed for industrial applications that require a compact VGA
compatible monitor with good viewability. It is constructed from painted Aluminium, making it lightweight with good rigidity.


The 29LM103D31MP-M Series incorporates rugged chassis construction for shock and vibration. With wide viewing angles and deep dimming capabilities, this series of monitors is ideal for the more demanding of applications. The 31MP-M series has been designed to comply with military standards for shock & vibration and EMC.

Product Specification
Max Resolution:
640 x 480 pixels
Active Display Area:
132.48 x 99.36 mm
Contrast Ratio:
600:1 typical
Brightness:
400cd/m2 typical
Viewing Angles
160 0 / 160 0
Connector:
Power: 851-02R123P50
Signal: 8STO-12G35SN
Signal Sync:
Analog RGB 0.7-1.0V p-p
Power Supply:
15 - 30V DC
Power Consumption:
60W (Max)
Monitor Dimensions:
258 x 199.5 x 70mm (approx)
Monitor Weight:
3kg approx
